FIRE POLY FPCC

CLEAR FIRE RETARDANT COATING for

COMPOSITES ● FIBERGLASS ● PLASTIC ● PLASTIC PIPE ● PVC ● PLASTIC PANELS AND SHEATHING ● STYROFOAM ●POLYURETHANE FOAM ● POLYSTYRENE ● FOAM INSULATION ●POLYPROPYLENE ●EPS ●XPS ● HDPE ● POLYISOCYANURATE RIGID INSULATION BOARD ● PLASTIC ARTIFICAL PLANTS

LABEL
FIRE RETARDANT FOR PLASTIC XPS - ASTM D3806 / ASTM E84
FIRE RETARDANT FOR PLASTIC EPS - ASTM D3806 / ASTM E84
TESTING AGENCY SOUTHWEST RESEARCH INSTITUTE
TEST MATERIAL TESTED RESULTS

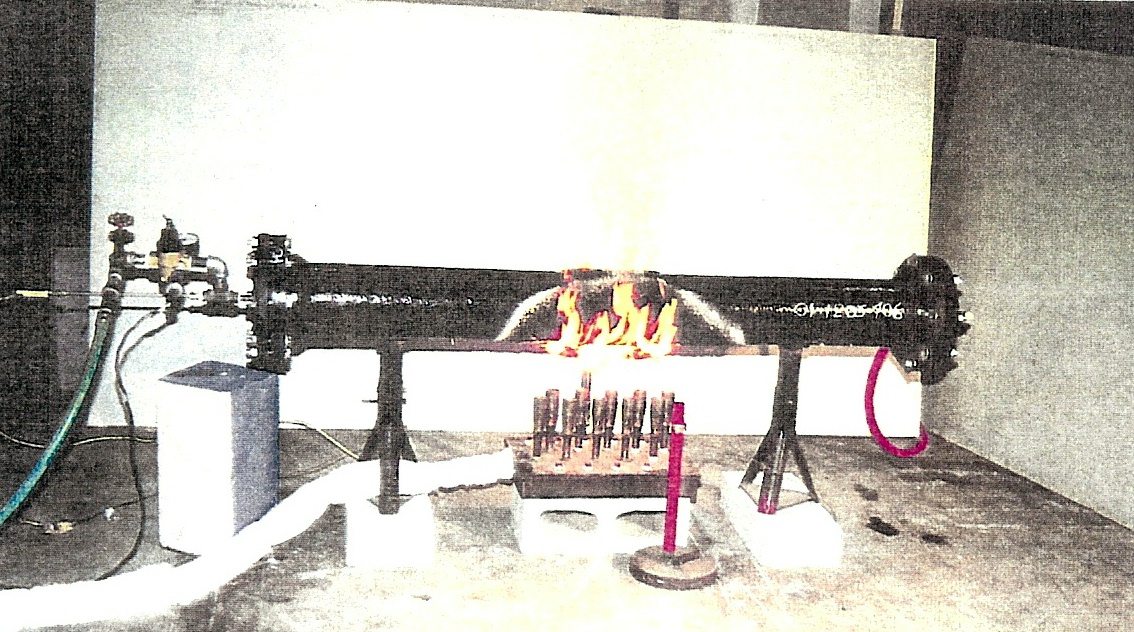

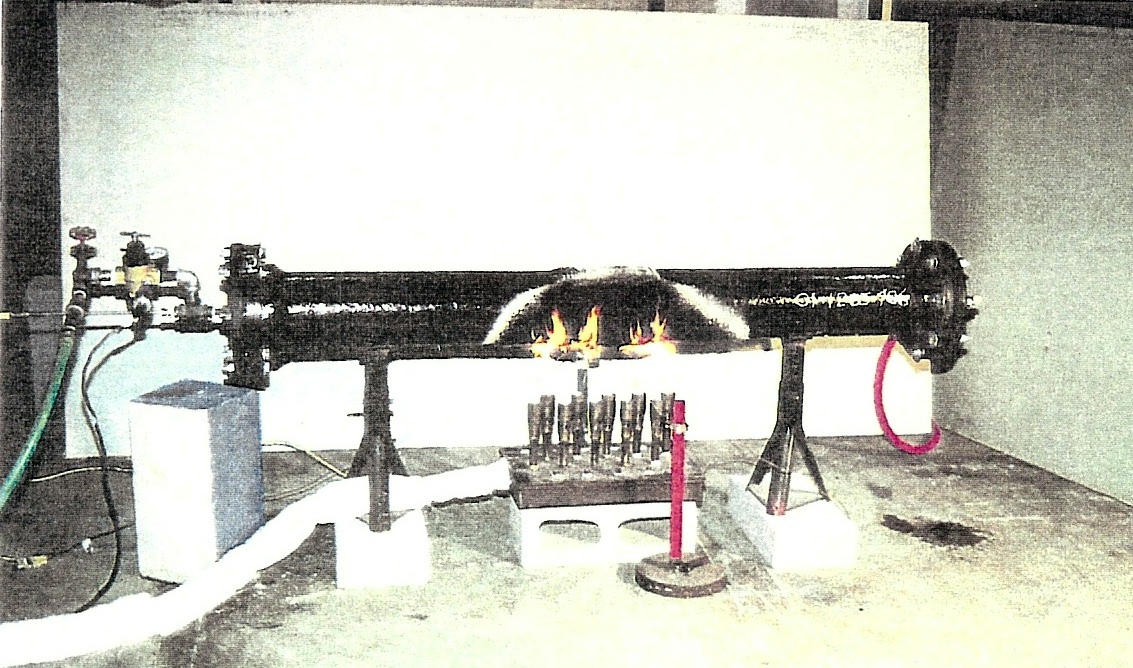

Fire Endurance and Hydrostatic Evaluation Based on International Maritime Organization Resolution (MQ) Resolution A.753(18); Appendix 2 and ASTM F1173-95 Section A5 Wet Condition Classification of Water Filled Plastic Pipe Conley epoxy 20, 6-in. FLGXFLG Spool pipe coated with Flame Safe Chemical Corporation's Fire Poly FPCC
Passed

FIRE ENDURANCE
PASSED
Number of fire retardant coats
1
Rate per coat (ft2/gal)
200
TECHNOPLAST FIBERGLASS PIPE
FIRE RETARDANT COATING
for
STYROFOAM ●POLYURETHANE FOAM ● POLYSTYRENE ●CABLE
ASTM E84 POLYSTYRENE FOAM INSULATION
ASTM E84 POLYSTYRENE HDPE PLASTIC PANEL
ASTM D3806 PLASTIC
14CFR Part 19 (for FAA)
TEST 14 CFR Part 29.853(a)(2)
TEST MATERIAL TESTED RESULTS
NFPA 701

3/4" Styrofoam painted with green latex paint and coated with Flame Safe's Fire Poly FPCC

3/4" Styrofoam (white) coated with Flame Safe's Fire Poly FPCC

Passed



Passed
NFPA 701
NFPA 701
FPCC FIRE RETARDANT FOR PLASTIC ASTM E84 / ASTM D3806
THE BEST FIRE RETARDANT AVAILABLE

fire retardant logo

FIRE POLY FPCC

TECHNICAL DATA

Fire retardant for plastic type substrates such as Plastic Pipe and styrofoam, polystyrene, Polycarbonate HDPC, polypropylene, PVC,

PRODUCT DESCRIPTION:    Aqueous Based Resin

PRODUCT ANALYSIS
Total Solids
 63%   PH
2.5 - 2.8
Weight per gallon
 13.2 lbs Flash point
Non-Flammable
Specific gravity
 1.33 Color
Milky white, dries clear
Volatability
 Non-Volatile Solvents
Water(Contains no petroleum or derivatives of petroleum)
Anti-Fungus
 excellent Resistance Bacterial
Good Resistance
Linear shrinkage
 None Moisture Absorption
Slight
Corrosive
 Mildly Toxic
None (when dry)
Scrubability
 1000 cycles Incompatiblilty
Strong oxidizers, alkalis or acids (materials to avoid)
Toxic
 None, when dry

RECOMMENDED USE: Pressurized plastic pipe, fiberglass and plastic, composite piping systems, plastic conduits, styrofoam, polyurethane foam, styrene

FLAME SAFE FIRE POLY FPCC is a high intumescent coating that is specifically formulated as a fire retardant and smoke inhibitor for various plastic type substrates. It specially formulated for interior and exterior use and be overcoated with paint. When applied in an interior application and according to Flame Safe's specifications, it is a permanent and effective fire retardant for the life of the structure provided it is not removed by extraordinary means or exposed to extreme moisture conditions.

ENVIRONMENTAL REGULATION:

This product complies will U. S. Federal Regulations concerning the use of lead in paint and hydrocarbon emissions.

fire retardant logo
QUICK REFERENCE FOR APPLYING FIRE POLY FPCC
MATERIAL
APPLICATION
COVERAGE RATE

Plastic Pipe, PVC pipe, Composite pipe





Styrofoam, Polyurethane foam, polystyrene

Be sure surface is clean and dry before treating.

Brush or roll coater
To apply with sprayer head held at 8 to 12 inches from surface.

Be sure to allow drying between each coat.

1 coat @ 200 sq. ft. per gallon - recommended 2 coats @ 400 sq ft per gallon or 3 coats @ 600 sq ft per gallon





Apply three (3) coats at 600 sq. ft. per gallon with the final coverage rate of 200 sq. ft. per gallon

EXTERIOR / INTERIOR

          All surfaces to be treated must be clean and dry. Fire Poly FPCC is water based, clear liquid that becomes insoluble when dry. If over-coating is intended, Fire Poly FPCC is an excellent primer for use under or over latex paints.

DO NOT DILUTE OR MIX FIRE POLY 100 WITH ANY OTHER PRODUCTS.

Avoid wasteful runs and dripping. It should be noted that unlike some products, materials treated with Fire Poly FPCC require no special cutting tools or special fasteners. Contact parts of any equipment should be stainless steel or plastic to prevent chemical reaction and breakdown. Storage may be done in polyethylene containers.

clear fire retardant for plastic composite pipe Clear Flame Retardant for fireproofing Plastic and Plastic Composites
Fire Resistant Testing for Plastic Pipe ASTM - Southwest Research InstituteFire Resistant Testing for Plastic Pipe ASTM - Southwest Research Institute
Fire Retardant for Fiberglass (FRP) plastic test Southwest Research InstituteFire Retardant for Fiberglass (FRP) plastic test Southwest Research Institute
