2650 Warfield Avenue, Fort Worth, TX 76106
FIRE POLY™ FP100
INTERIOR/EXTERIOR FIRE RETARDANT
COATING / SPRAY
FOR ALL WOOD PRODUCTS
PLYWOOD ● LUMBER ● TIMBER ● OSB ● I-JOISTS
| FP100 label |
| FIRE POLY TEST RESULTS |
| ASTM E84/2768 (INTERTEK I-jOISTS) |
| ASTM E2768 (30 Minute) ASTM D2898 |
 |
CALL for a FREE SAMPLE 1-800-333-9197 Test for appearance, compatibility and efficacy on your designated substrate |
FIRE RETARDANT COATING SURFACE BURNING CHARACTERISTICS OF APPLIED COATING
| Flame spread | <10 lumber. < 5 plywood, 0 OSB; 0 I-joist |
| Smoke developed | 125 lumber; 115 plywood; 40 OSB; 80 I-joist |
| Number of preliminary coats | None |
| Rate per coat (ft2/gal) | -- |
| Number of fire retardant coats | 1 |
| Rate per coat (ft2/gal) | 200 |
| Number of overcoats | None |
| Mil thickness | 4 - 5 |
| Flash point of liquid coating: | |
| Fire retarding coating - closed cup, | no flash |
FIRE POLY™ FP100 |
TECHNICAL DATA INTERIOR / EXTERIOR CLASS A FIRE RETARDANT COATING |
|---|
PRODUCT DESCRIPTION: Aqueous Based Resin
| PRODUCT ANALYSIS | ||||
|---|---|---|---|---|
Total Solids |
63- 67% | PH | 1.9 - 2.2 |
|
Weight per gallon |
13.2 - 13.3lbs | Flash point | Non-Flammable |
|
Specific gravity |
1.45 | Color | Milky color dries clear . |
|
Volatability |
Non-Volatile | Solvents | Water(Contains no petroleum or derivatives of petroleum) |
|
Anti-Fungus |
excellent Resistance | Bacterial | Good Resistance |
|
Linear shrinkage |
None | Moisture Absorption | None |
|
Corrosive |
Mildly | Toxic | None (when dry) |
|
Insects, rodents, aspergilli And other types of molds |
Excellent resistance | Termites | Excellent resistance |
|
Preservative for wood |
Good | Scrubability | 1000 cycles |
|
RECOMMENDED USE: Interior/Exterior ASTM E84 Class A, UL Type 1 Rating
FLAME SAFE FIRE POLY100 is a high intumescent fire retardant coating. It can be used on any type of wood, porous, or non-porous materials, such as:
| Yellow pine | Redwood | Cedar | Douglas Fir | OSB |
| Maple | Oak | Poplar | Walnut | I-Joists |
| Cyprus | Mahogany | Teak | SPF | Trusses |
| Glulams | LVL, PSL | Ponderosa Pine | Plywood | Rim Board |
QUICK REFERENCE FOR APPLYING FIRE POLY™ FP100 FIRE RETARDANT |
| MATERIAL | Exterior/Interior fire retardant for wood and wood products, any type of wood |
| APPLICATION | Treat before, during or after construction.
Be sure surface is clean and dry before treating. Apply with spray, brush or roller. May be necessary to wipe on hardwood surfaces Treat all surface areas where possible Do not expose treated area to moisture for 24 hours. |
| COVERAGE | Apply one (1) coat at the rate of 200 sq. ft. per gallon |

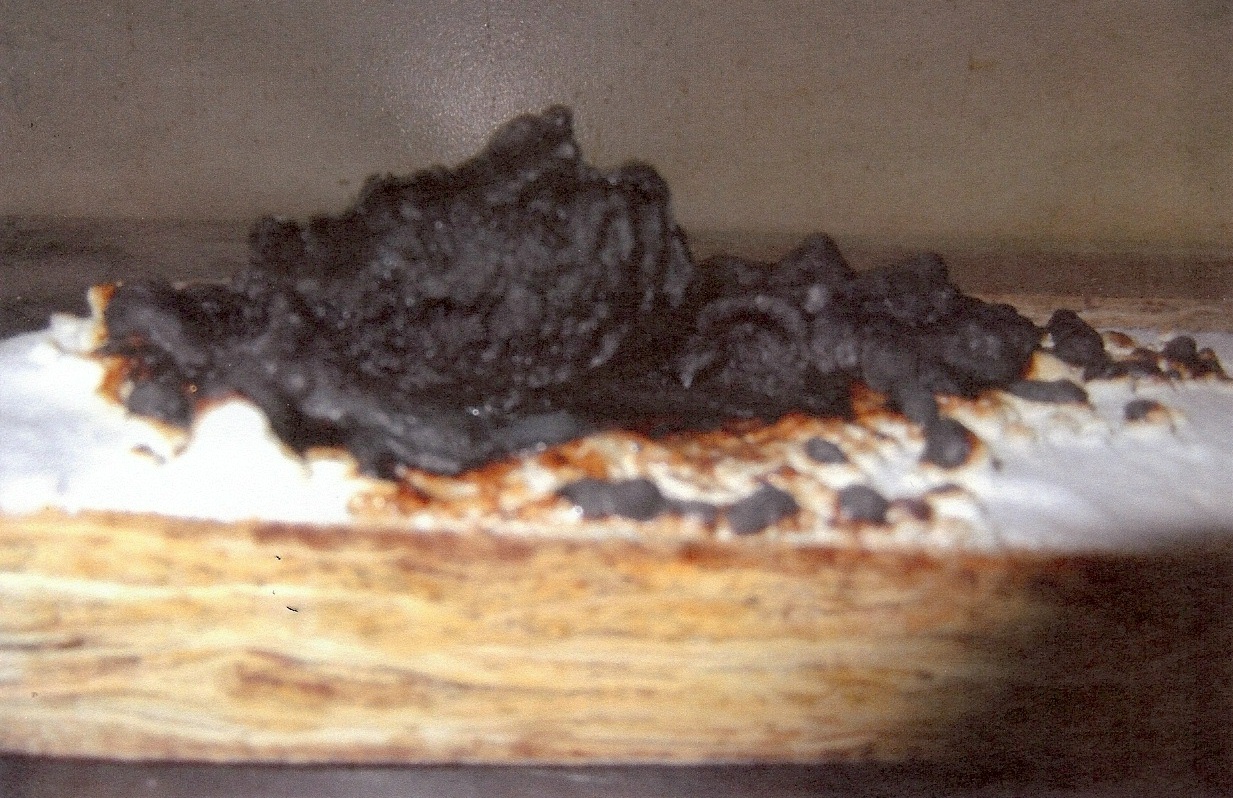

Flame Safe's Fire Poly™ FP100 high intumescent fire retardant coating swells as a result of heat exposure, converting combustible gases and tars to non-combustible carbon char causing the surface to bubble-up and thereby creating a barrier between the fire and the treated material. The carbon char is a poor conductor of heat, therefor it protects the substrate from excessive heat and fire. |
 high intumescent fire retardant coating |
EXTERIOR / INTERIOR WOOD All surfaces to be treated must be clean
and dry. Fire Poly™ FP100 fire retardant coating is water-based, clear liquid that
becomes insoluble when dry. On exterior wood
Fire Poly™ FP100 can last five years or more, while
maintaining a flame spread index of less than 25.
In extreme weather conditions it may be necessary
to re-coat surfaces every three to five years. It
also acts as a preservative, waterproofing agent,
ultra violet inhibitor, mold and mildew inhibitor, and
it repels insects. If over coating is intended, Fire
Poly™ FP100 fire retardant coating is an excellent surface primer for use under
latex paints, or can be used as a finished coat over
water based stains. Finished surfaces will exhibit
semi-gloss to gloss finish similar to lacquers or
epoxies. Contact parts of any equipment should be stainless steel or plastic to prevent chemical reaction and breakdown. Storage may be done in polyethylene containers. Fire Poly™ FP100 fire retardant coating when applied according to the manufacturer’s specifications is the most effective fire retardant coating available. |
watch video A clear flame retardant coating for interior and exterior use. Lowest flame spread possible |
|---|
| Call for pricing and ordering 1-800-333-9197 |
ENVIRONMENTAL REGULATION:
This product complies will U. S. Federal Regulations concerning the use of lead in paint and hydrocarbon emissions.
| THE BEST FIRE RETARDANT AVAILBLE |
 |
 |
|---|
